DIGITECH CO., LTD. is the manufacture and sale manufacturer of various types of load testing machine, which specializes in the load measurement.

　　　　

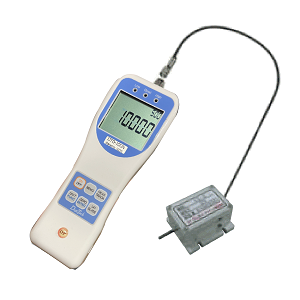

External Connection Force GaugeDTW-5N / DTW-20N / DTW-200K


  • By connecting a variety of load cell to the instrument, it can be used as a portable type of force gauge.
  • OK, and it has all of the features of DTG force gauge, such as ± NG judgment contact output.

DTW series specification

Measuring unit N,kgf（gf）, lb
Accuracy ±0.2％ f.s
Measurement Peak value, Contactpoint value, Tracking value
Weight approx. 600g(a sensor part is included)

※Specifications are subject to change without notice.

DTW series Another model list

Model Capacity Resolution
DTW-5N 5N 0.001N
DTW-20N 20N 0.01N
DTW-2000N 2kN 1N

※Various load capacity other than the above can also be produced.
